| FEATURES | ||||||

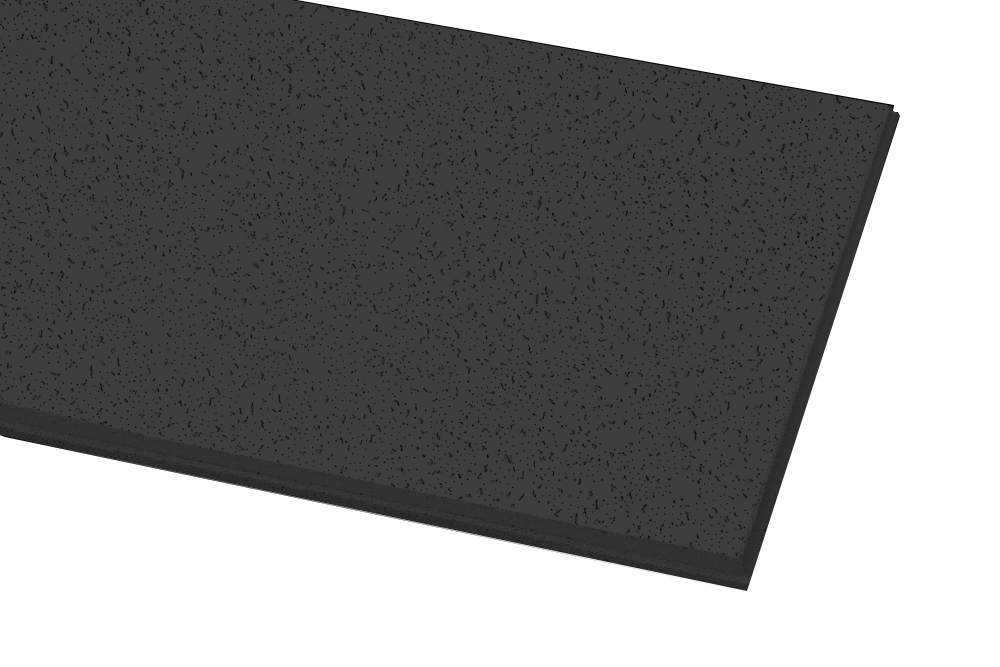

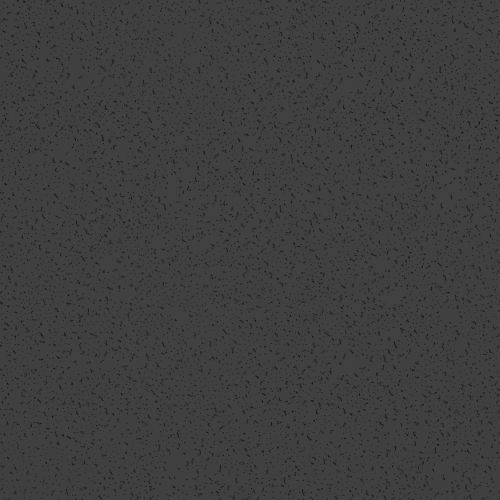

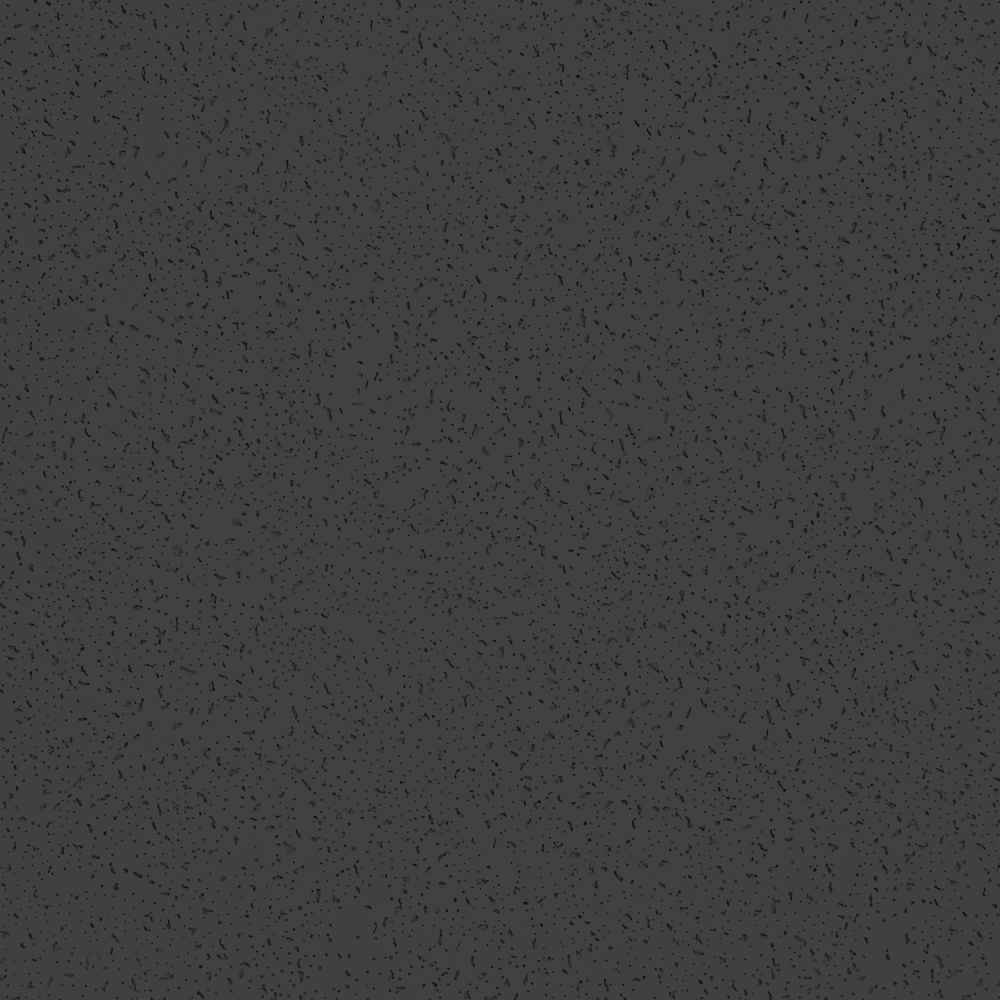

| Tiny pineholes pattern | ||||||
| Non-direction pattern makes installation easy and saves cost | ||||||
| High light reflection | ||||||
| Great sound absportion ability | ||||||
| 100% Asbestos free | ||||||
| PHYSICAL DATA | ||||||
| Raw materials | Surface finish | |||||
| Wet-formed slag fiber | Factory-applied vinyl paint | |||||
| Weight | Insulation Value | |||||
| 3.40-4.50kg/m2 | 15mm Average R Factor-1.5 (Imperial) | |||||
| Fire resistance | 0.70-0.92lbs/SF Factor-0.26(Metric) | |||||
| Class A:Flame spread 25 or under ASTM E84 | ASTM E1264 | |||||
| B grade:China standard | Type 3，Form 2,Pattern CDE | |||||
| Class 0:Brintain standard BS476 part6&7 | ||||||
| PERFORMANCE STANDARD | ||||||
| Humidity Resistance | Up to RH99 | |||||
| Noise Reduction Coefficients | Up to NRC 0.65 | |||||
| CAC | 36 | |||||
| Light reflection | 0.86 | |||||
| DIMENSIONS* | ||||||
| System | Nominal size | Actual size | ||||
| Metric size | 600mmx600mm | 595mmx595mm | ||||
| 600mmx1200mm | 595mmx1195mm | |||||
| Imperial size | 2'x2' | 605mmx605mm | ||||
| 2'x4' | 605mmx1215mm | |||||
| Thickness | From 12mm-20mm | |||||
| *Plank sizes and customized sizes are avilable ,please contact us for more details. | ||||||
| EDGE TYPES | COLORS* | |||||
 |
 |
|||||
| *White is standard ,please consult AllandCeiling sales engineer for more choices. | ||||||
